Bumper Cover Lower Section, Removing And Installing, SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover trim. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, SPORTBACK .

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, SPORTBACK .

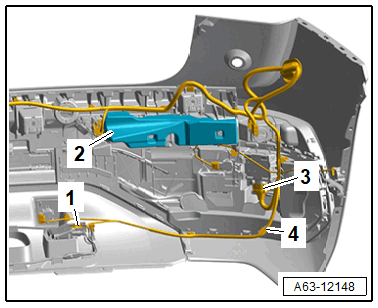

-- Disconnect the connectors -1 and 3- and free up the wiring harness -4-.

Courtesy of AUDI

-- Remove the tail lamp. Refer to LOWER TAIL LAMP, REMOVING AND INSTALLING .

-- Disengage the filler piece -2- and remove it.

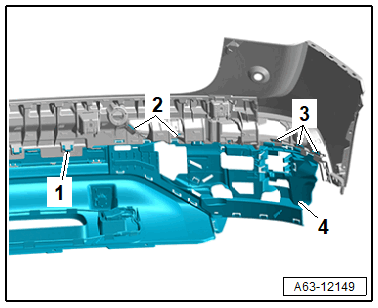

-- Release the catches -1, 2 and 3- and remove the bumper cover lower section -4- from the bumper cover.

Courtesy of AUDI

-- Place the bumper cover lower section on a soft surface.

-- Remove the bumper cover trim. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, SPORTBACK .

Courtesy of AUDI

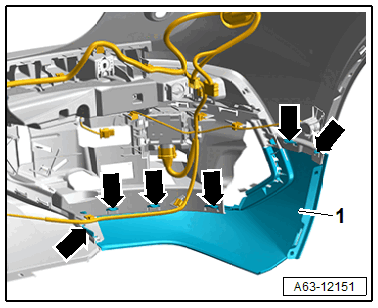

-- Release the retainers -arrows- and remove the lower section -1- from the bumper cover.
