Trim Molding For Bumper Cover Lower Section, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover lower section. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .

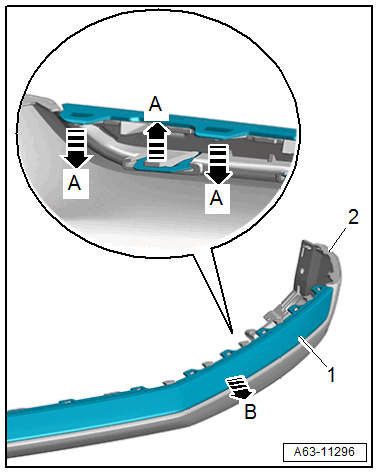

-- Release the catches in the direction of -A arrows- and at the same time remove the trim molding -1- from the bumper cover lower section -2- in the direction of -arrow B-.
