Side Air Intake Grille Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side air intake grille. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, S LINE, SQ5 BEFORE PRODUCT IMPROVEMENT, Q5 WITH HIGH-VOLTAGE SYSTEM .

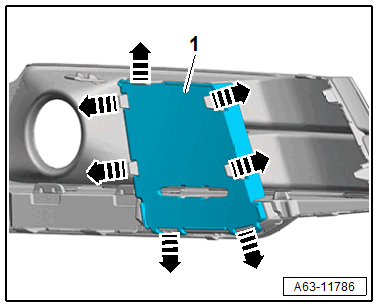

-- Release the retainers in the direction of -arrows-.
-- Remove the cover -1-.

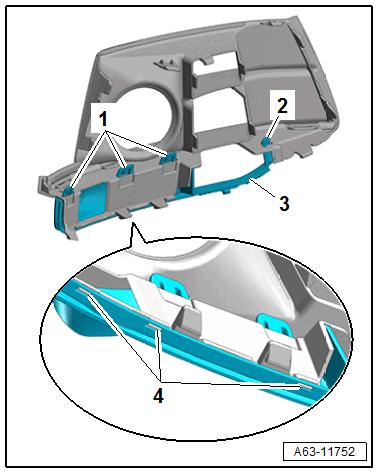

-- Release the retainers -1, 2 and 4-.
-- Remove the lower trim -3-.
