Securing Strip For Bumper Cover Side Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the front wheel cover in the area of the bumper side section. Refer to WHEEL COVER, REMOVING AND INSTALLING, FRONT .
-- Remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .
-- Loosen the front wheel housing liner in the area of the bumper cover. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Remove the bolts -arrows-.

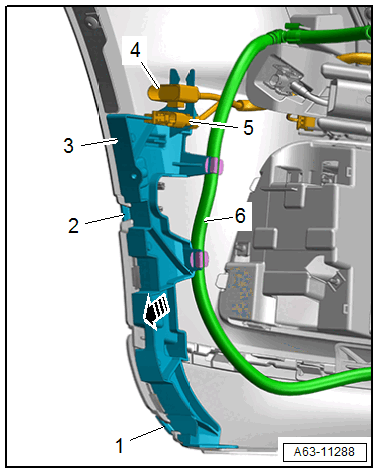

-- Vehicles with headlamp washer system: free up the washer fluid hose -6-.
-- Free up the wire -4- and if equipped free up the antenna wire -5-.
-- Remove the securing strip -3- in the direction of -arrow- out of the mounts -1 and 2- on the bumper lower section and remove from the bumper cover side panel.
