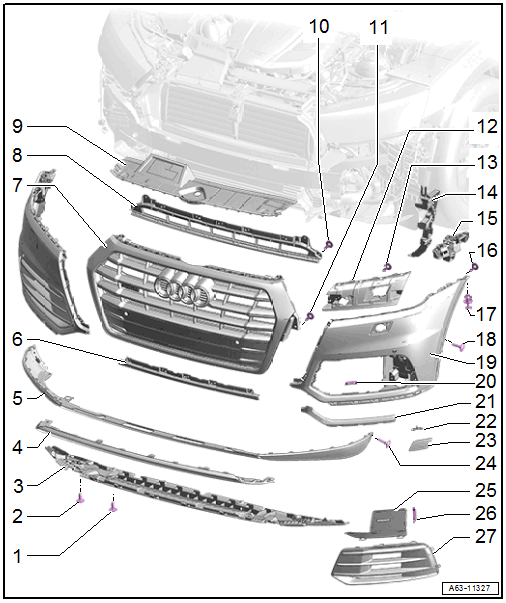

Overview - Bumper Cover, Before Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 4
- 5 Nm
- Bolt
- Quantity: 2
- 2 Nm
- End Panel
- The bumper cover
- Removing and Installing. Refer to BUMPER COVER END PLATE, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Impact Guard
- Equipped on some models
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Connecting Piece
- Removing and Installing. Refer to CONNECTING PIECE FOR BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
- Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
- Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Lock Carrier Cover
- Removing and Installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 7
- 2 Nm
- Bolt
- Quantity: 2
- 2 Nm
- End Panel
- For the bumper cover side panel
- Removing and Installing. Refer to BUMPER COVER SIDE PANEL END PLATE, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Bolt
- 2 Nm
- Securing Strip
- For the bumper cover side panel/lower section
- Removing and Installing. Refer to SECURING STRIP FOR BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
- Mount
- For the bumper cover side panel
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Expanding Rivet
- Bolt
- Quantity: 2
- 2 Nm
- Bumper Cover Side Panel
- Removing and Installing. Refer to BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Clip
- Quantity: 2
- No replacement part
- End Panel
- For the pedestrian protection in the bumper cover side panel
- Cannot be replaced separately
- Bracket for the Washer Nozzle Cover
- Only on vehicles without headlamp washer system
- Cover
Equipment versions with headlamp washer system
- Washer Nozzle Cover, Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING
Equipment versions without headlamp washer system
- Blind cover, removing and installing. Refer to BLIND COVER IN BUMPER COVER, REMOVING AND INSTALLING .
- Washer Nozzle Cover, Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING
- Bolt
- 2 Nm
- Cap
- For the air intake grille
- Equipped on some models
- Clip
- Quantity: 2
- Air Intake Grille
- Side
- Removing and Installing. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
