Molded Foam Part, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

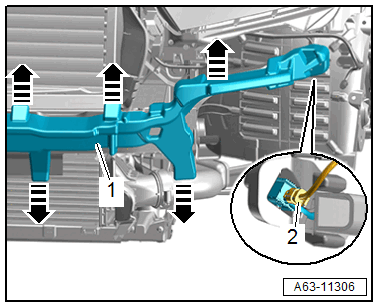

-- Vehicles with pedestrian protection: remove and press down the connector lock and disconnect the connector -2-.
-- Cut the cable tie.
-- Release the tabs in the direction of -arrows- and remove the molded foam part -1- from the impact member.
