Impact Member, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

CAUTION:

Pyrotechnical components can deploy unintentionally.

Risk of injury.

- Discharge the static electricity: quickly touch the door striker.

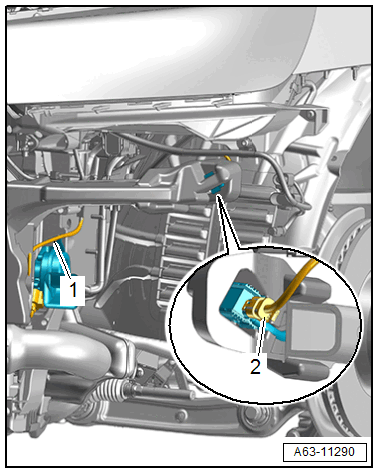

-- Vehicles with pedestrian protection: disconnect the connector -2- from the pedestrian protection crash sensor.

Courtesy of AUDI

-- Free up the wiring harness -1- on both sides.

-- Disconnect the connector -1- from the Outside Air Temperature Sensor -G17- -item 3-.

Courtesy of AUDI

-- Vehicles with auxiliary radiator: unclip and remove the air duct -1- in the direction of -arrow-.

Fig 1: Identifying Front Bumper Cover

Courtesy of AUDI

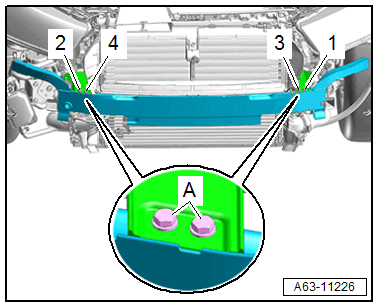

-- Loosen the threaded connection -1 through 4- and remove the bolts -A- upward.

Fig 2: Front Impact Member - Tightening Sequence

Courtesy of AUDI

-- Remove the impact member from the mount.
