Connecting Piece For Bumper Cover Side Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .

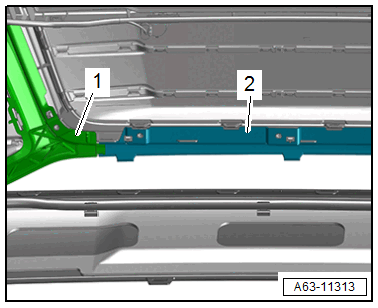

-- Lift the bumper cover side panel -1- slightly and at the same time remove the connecting piece -2-.
