Bumper Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

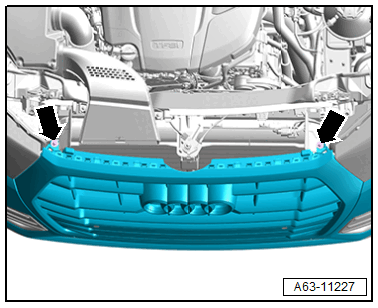

-- Remove the bolts -arrows-.

Courtesy of AUDI

-- Remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .

-- Q5: loosen the front wheel housing liner in the area of the bumper cover. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- SQ5: remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Before product improvement: release the catches -7 to 3- using a flat-head screwdriver in the direction of -arrow- and remove the wheel arch trim -2- from the bumper cover -1-.

Courtesy of AUDI

TIP:

Only loosen the clips and not the adhesive on the wheel arch trim, otherwise the wheel arch trim must be replaced.

-- From product improvement: release the retainer -1- and then release the retainers -8 through 4- using a flat-head screwdriver -arrow-.

Courtesy of AUDI

-- Remove the wheel arch trim -3- from the bumper cover -2-.

TIP:

Only loosen the clips and not the adhesive on the wheel arch trim, otherwise the wheel arch trim must be replaced.

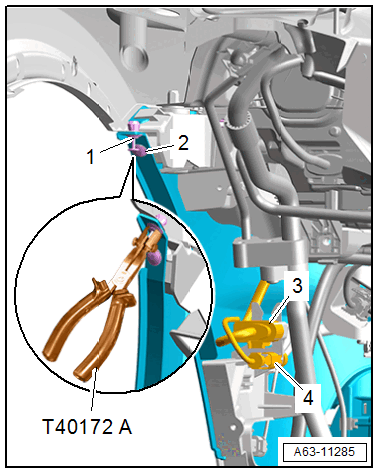

-- Use the Rivet Pliers:T40172A with the Adapter:T40172/1 to remove the expanding rivet -1-.

Courtesy of AUDI

-- Remove the bolt -2-.

-- Disconnect the central connector -3-.

-- If equipped, disconnect the antenna wire -4-.

Vehicles with automatic distance control:

Courtesy of AUDI

-- Remove the air intake grille. Refer to SIDE AIR INTAKE GRILLE, REMOVING AND INSTALLING .

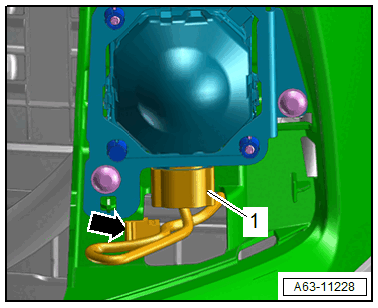

-- Free up the wiring harness -arrow-.

-- Disconnect the connector -1-.

Vehicles with Headlamp Washer System:

Courtesy of AUDI

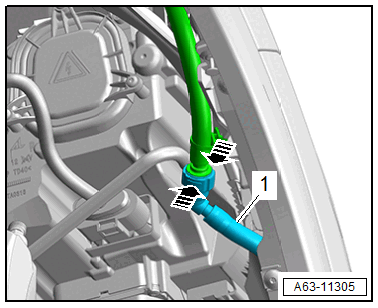

-- Push the release buttons in the direction of -arrows- and disconnect the washer fluid hose -1- for the headlamp washer system.

-- Seal off the hose coupling with clean plugs from the Engine Bung Set:VAS 6122 .

Continuation:

Courtesy of AUDI

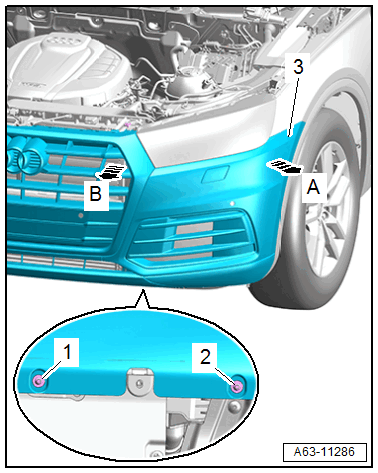

-- Remove the bolts -1 and 2-.

-- Disengage the side section -3- from the side panel in the direction of -arrow A- and remove the bumper cover toward the front with the help of a second technician in the direction of -arrow B-.

-- Lay the bumper cover on a soft surface.
