Height Adjustment:
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

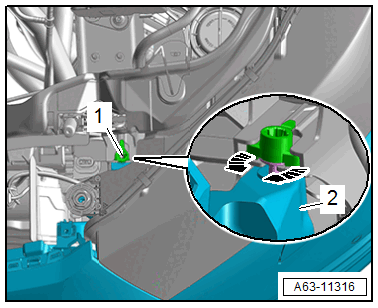

-- Install and remove the bolt -1- in stages in the direction of -arrows- until the gap dimension is adjusted correctly to the bumper cover to the hood.
- By tightening and loosening the adjusting screw the height of the headlamp mount -2- is adjusted with the bumper cover.
-- Check the gap dimension and repeat the adjustment if necessary.
