Side Bumper Cover End Plate, Removing And Installing, From Product Improvement: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the reinforcement brace for the radiator grille. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .

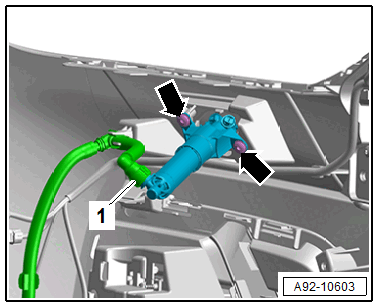

-- If equipped, press the release buttons on both sides and remove and free up the washer fluid hose -1-.
-- Remove the bolts -arrows-.

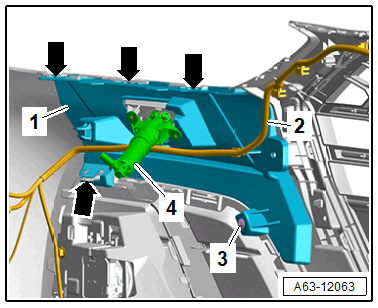

-- Remove the bolt -3- and free up the wiring harness -2-.
-- Release the retainers -arrows- and remove the end plate -1-, for this, if equipped, slightly pull the washer nozzle -4- to the rear.
