Bumper Cover Mount, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

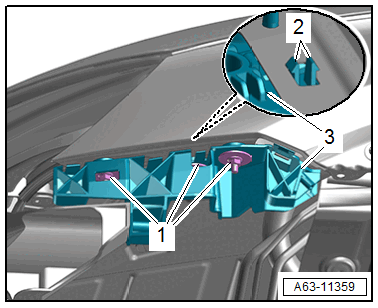

-- Remove the nuts -1-.
-- Remove the bumper cover mount -3- downward. This will release the retainers -2-.
