Bumper Cover Lower Section, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

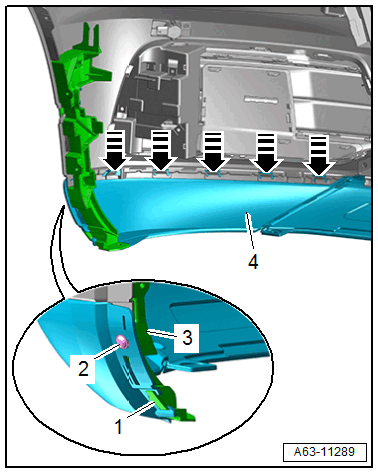

-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
-- Remove the bolt -2-.
-- Disengage the bumper cover lower section -4- from the reinforcement -3- on the side.
- The guide -1- must be pushed out of the mount for this.
-- Release the retainers in the direction of -arrows- and remove the lower section from the bumper cover at the same time.
