Bumper Cover End Plate, Removing And Installing, From Product Improvement: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover side panel securing strip. Refer to SECURING STRIP FOR BUMPER COVER SIDE PANEL, REMOVING AND INSTALLING .

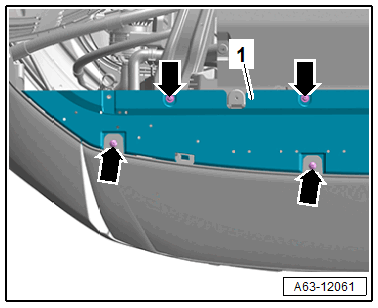

-- Remove the bolts -arrows- from the bumper cover end plate -1-.

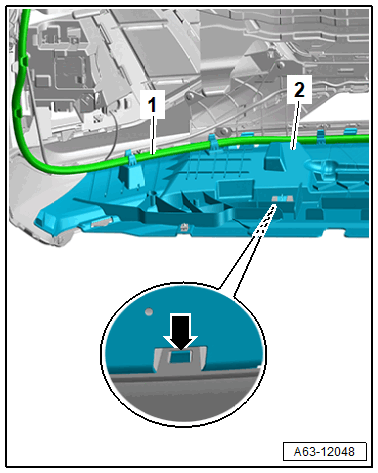

-- If equipped, push the bumper cover end plate -2- as far as possible downward and free up the washer fluid hose -2- for the headlamp washer system.
-- Release the catch -arrow- and remove the bumper cover end plate toward the rear.
