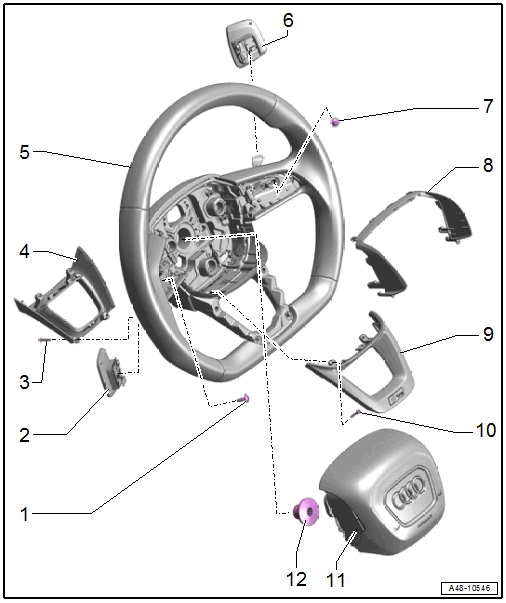

Overview - Steering Wheel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Tightening specification. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
- Tiptronic Downshift Button -E480-
- Bolt
- 1.2 Nm
- Rear Trim
- For the steering wheel
- Steering Wheel
- Removing and installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
- Tiptronic Upshift Button -E479-
- Bolt
- Tightening specification. Refer to OVERVIEW - MULTIFUNCTION STEERING WHEEL .
- Upper Trim
- For the steering wheel
- Lower Trim
- For the steering wheel
- Bolt
- 1.2 Nm
- Driver Side AirbagWARNING:
Pyrotechnic components increase the risk of injury.
- Follow the safety precautions when working on the airbag. Refer to the appropriate Service Information. .
- Removing and Installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- 50 Nm
- Replace after removing
