Steering Intermediate Shaft, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Bring wheels in the straight position.

-- Move the driver seat all the way to the rear until it stops.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Switch off the ignition.

-- Use the steering wheel locking device -2- to lock the steering wheel -1- when the wheels are in straight-ahead position.

Courtesy of AUDI

-- Remove the center noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

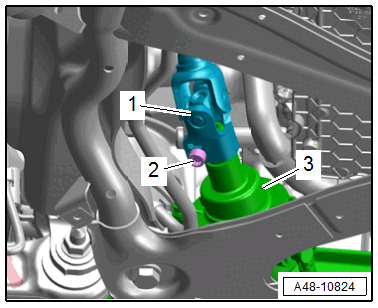

-- Remove the bolt -2-.

Courtesy of AUDI

-- Remove the universal joint -1- for the steering intermediate shaft from the steering gear -3-.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Push the carpet slightly toward the rear.

Courtesy of AUDI

-- Remove the nuts -1 and 4-, and remove the steering intermediate shaft -3- with the sealing lip -2-.

-- Remove the bolt -arrow- and remove the steering intermediate shaft universal joint -1- from the steering column -2- (example illustration).

Courtesy of AUDI

-- Remove the steering intermediate shaft.
