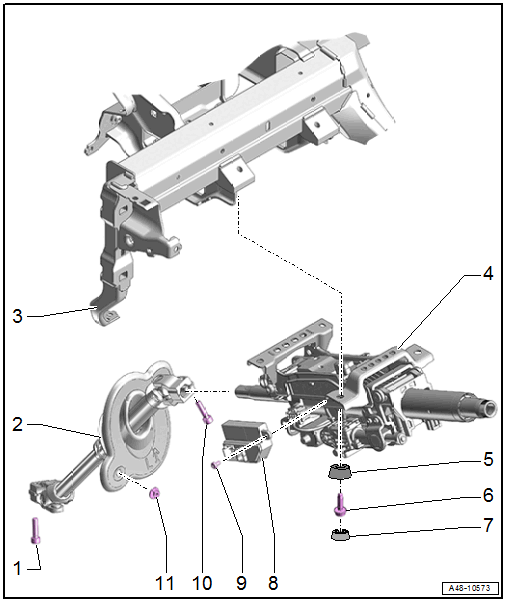

Overview - Steering Column, Power
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 20 Nm +90°
- Replace after removing
- Clean the threaded hole, for example, using a thread tap, before installing the new bolt.
- Install the bolt first by hand in the first threads. Check if the steering intermediate shaft is seated correctly by pulling. Then tighten the bolt.
- Steering Intermediate Shaft
- Removing and installing. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
- RHD: is a mirror image
- Instrument Panel Crossmember
- Steering Column
- Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- Check for damage. Refer to STEERING COLUMN, CHECKING FOR DAMAGE .
- RHD: is a mirror image
- Anti-Theft Protection Component Lower Section
- Equipment version with manual transmission
- Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 4
- Anti-Theft Protection Component Upper Section
- Equipment version with manual transmission
- Power Adjustable Steering Column Control Module -J866-
- Removing and installing. Refer to Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING .
- RHD: is a mirror image
- Bolt
- 1.5 Nm
- Bolt
- 20 Nm +90°
- Replace after removing
- Clean the threaded hole, for example, using a thread tap, before installing the new bolt.
- Install the bolt first by hand in the first threads. Check if the steering intermediate shaft is seated correctly by pulling. Then tighten the bolt.
- Nut
- 4.5 Nm
