OVERVIEW - STEERING COLUMN, POWER WITH Active Steering Motor -V477-

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

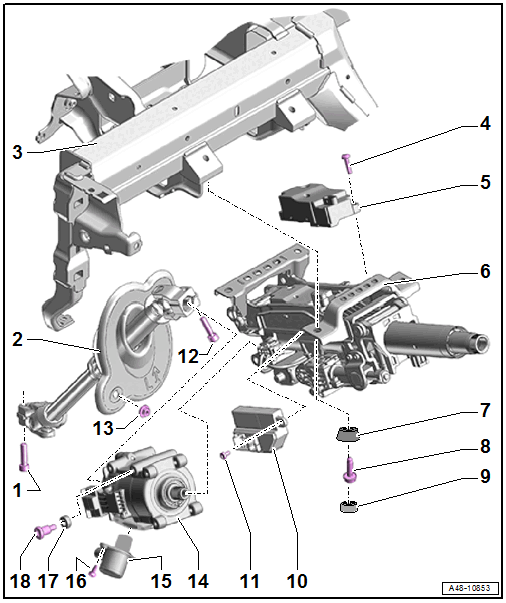

Fig 1: Exploded View Of Steering Column, Power With Active Steering Motor -V477-

Courtesy of AUDI

1 - Bolt
- 20 Nm +90°
- Replace after removing
- Clean the threaded hole, for example, using a thread tap, before installing the new bolt.
- Install the bolt first by hand in the first threads. Check if the steering intermediate shaft is seated correctly by pulling. Then tighten the bolt.
2 - Steering Intermediate Shaft
- Removing and installing. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
- RHD: is a mirror image
3 - Instrument Panel Crossmember
4 - Bolt
- 4.5 Nm
5 - Electronic Steering Column Lock Control Module -J764-
- Equipped on some models
- Removing and installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING .
- RHD: is a mirror image
6 - Steering Column
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Steering Column, Removing and Installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- Check the steering column for damage. Refer to STEERING COLUMN, CHECKING FOR DAMAGE .
- RHD: is a mirror image
7 - Anti-Theft Protection Component Lower Section
- Equipment version with manual transmission
8 - Bolt
- Tightening specification and sequence. Refer to Figure.
- Quantity: 4
9 - Anti-Theft Protection Component Upper Section
- Equipment version with manual transmission
10 - Power Adjustable Steering Column Control Module -J866-
- Removing and installing. Refer to Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING .
- RHD: is a mirror image
11 - Bolt
- 1.5 Nm
12 - Bolt
- 20 Nm +90°
- Replace after removing
- Clean the threaded hole, for example, using a thread tap, before installing the new bolt.
- Install the bolt first by hand in the first threads. Check if the steering intermediate shaft is seated correctly by pulling. Then tighten the bolt.
13 - Nut
- 4.5 Nm
14 - Active Steering Motor -V477-
- Steering column component
- Do not disconnect or loosen from the steering column
- If the Active Steering Motor -V477- is faulty, replace the steering column. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- RHD: is a mirror image
15 - Active Steering Safety Lock Actuator -F437-
- Removing and installing. Refer to ACTIVE STEERING SAFETY LOCK (LOCKING SOLENOID), REMOVING AND INSTALLING .
16 - Bolt
- Tightening specification and sequence. Refer to Figure.
17 - Damper
- Steering column component
18 - Pin
- Steering column component
- Do not disconnect or loosen from the steering column
