Active Steering Safety Lock (Locking Solenoid), Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

To avoid a crooked steering wheel, the steering wheel must not be turned and the straight-ahead position or angle of the front wheels must not be changed when the adjusting element is removed.

Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Turn the steering wheel in the straight position.

-- Switch off the ignition.

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Mark the installation position of the Active Steering Safety Lock Actuator -F437- -arrow- for reinstallation.

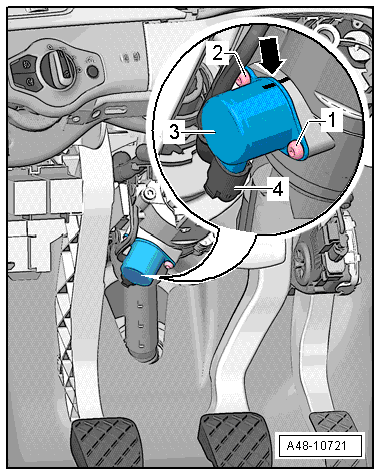

Fig 1: Active Steering Safety Lock (Locking Solenoid Tightening Sequence

Courtesy of AUDI

-- Disconnect the connector -4-.

-- Clean paint residue off the bolt heads.

-- Remove the bolts -1 and 2- (use the socket included in the repair kit), and remove the safety lock -3- from the steering column.
