Seat Occupant Detection System, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of injury due to involuntary deployment.

Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, connecting a connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Secure the front seat to the Engine/Transmission Holder - Seat Repair Fixture:VAS 6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the bolt -2-.

Fig 1: Control Module Tightening Sequence on Bracket - Standard Seat

Courtesy of AUDI

-- Disengage the control module -1- from the bracket -arrow-.

-- Disconnect the connectors -3- and -4- from the control module by pressing the release.

-- If installed, remove the seat functions control module and the bracket. Refer to SEAT FUNCTIONS CONTROL MODULE, REMOVING AND INSTALLING .

-- Disconnect the modular wiring routing. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .

-- Open the corrugated tube and free up the wire.

Courtesy of AUDI

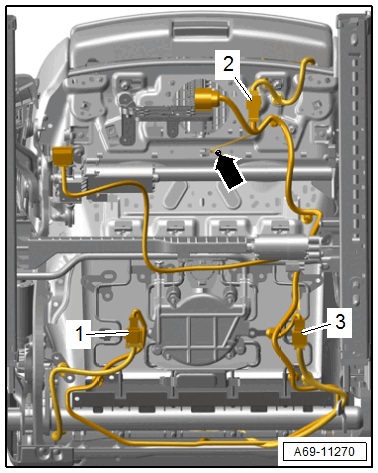

-- Remove the nut -arrow- and free up the wires.

-- Disconnect the connectors -1- through -3-.

-- Unclip and free up the wiring harnesses from the seat pan.

-- Remove the seat cover with seat cushion for the seat pan. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .

-- If necessary, separate the seat cover from the seat cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
