Component Location Overview - Seat Occupant Detection System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

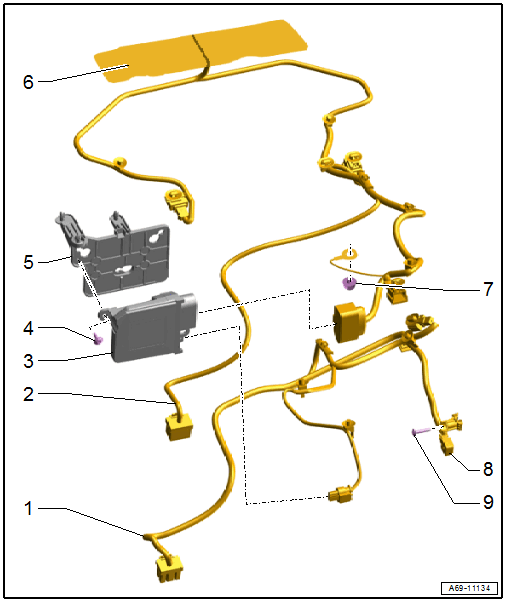

- Wiring Harness
- For the seat position sensor/seat belt fastening detection/seat belt switch
- Clip into the seat pan
- Black connector, connector station in the vehicle floor under the seat
- Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING
- Wiring Harness
- For the seat heating element with seat occupant detection system
- Clip into the seat pan
- Green connector, connector station in the vehicle floor under the seat
- Refer to SEAT OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING
- Seat Occupant Detection System Control Module -J706-
- Bolt
- 1.5 Nm
- Control Module Bracket
- Clip into the seat pan
- Passenger Seat Occupant Detection Sensor -G128-
- The seat heating element is used for the seat occupant detection system
- Depending on the seat version, the Front Passenger Occupant Detection Sensor -G128- is either sewn into the cover with the seat heating element, or bonded onto the seat cushion
- Refer to SEAT OCCUPANT DETECTION SYSTEM, REMOVING AND INSTALLING
- Nut
- 1.5 Nm
- Front Passenger Seat Position Sensor -G554-
- Driver seat: Driver Seat Position Sensor -G553-
- Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING
- Bolt
- Tightening Specification. Refer to OVERVIEW - SEAT POSITION SENSOR.
