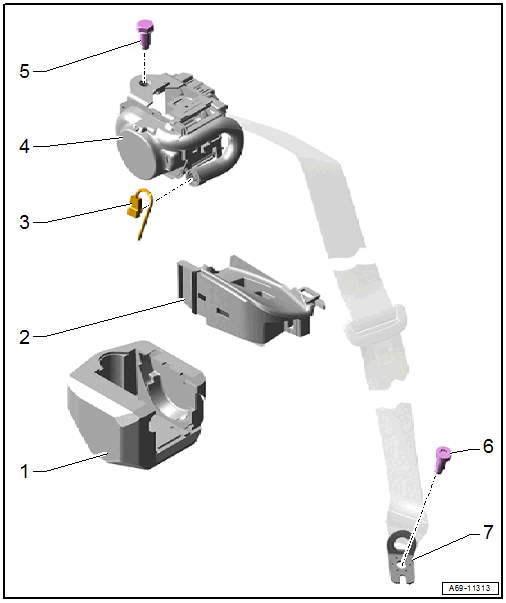

Overview - Outer Rear Three-Point Seat Belt
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Noise Insulation
- for the automatic belt retractor
- Equipped on some models
- Seat Belt Guide
- Refer to OUTER REAR SEAT BELT GUIDE, REMOVING AND INSTALLING
- Insert in the guides on the bracket with the bolt heads and pull forward until the catches engage audibly
- Connector
- Automatic Belt Retractor
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Bolt
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- 40 Nm
- Belt End Fitting
