Front Belt End Fitting, Removing And Installing, USA And CANADA Market-Specific: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Unscrew the front seat and tip forward with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the B-pillar lower trim panel. Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .
-- Open the cover -2- for the belt anchor -1- with a screwdriver on the catches -arrow-, open and push aside.
-- Push together the catches on the clamp with a plies -A arrows-.
-- At the same time push the anchoring pins -2- together with the clamp -3- to release in the -direction of arrow B-.
-- Disengage the anchoring pins from the clamp in the belt end fitting -1-.
-- Push the carpet in the threaded connection area to the side.

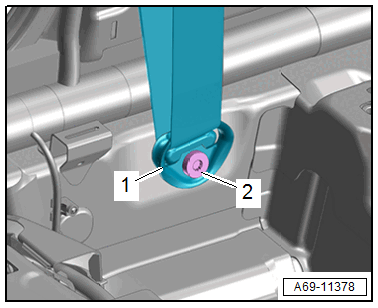

-- Remove the bolt -2- and remove the seat belt relay -1-.
