Pedestrian Protection Crash Sensor, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
-- Disconnect the battery ground cable when the ignition is turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
WARNING:
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Disconnect the connector -1- from the crash sensor by pulling out the connector lock -2- and pressing it down -arrow-.
-- Repeat the procedure on the opposite side.
-- Remove the molded foam part. Refer to Front Bumper .

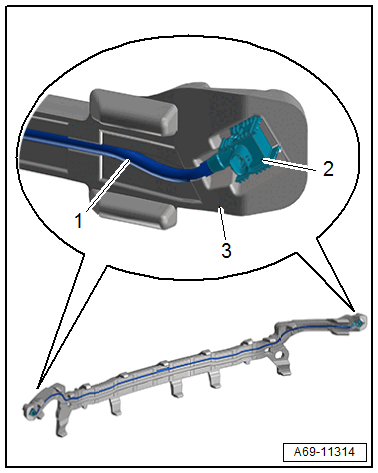

-- Disengage the pedestrian protection crash sensor -2- carefully from the molded foam part -3- and remove it with the pressure hose -1-.
