Pedestrian Protection Center Crash Sensor -G693-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lock carrier cover. Refer to Front Bumper .

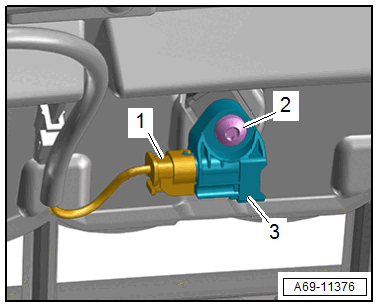

-- Remove the bolt -2- and remove the Pedestrian Protection Center Crash Sensor -G693- -item 3- from the bumper.
WARNING:
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Disconnect the connector -1- by pressing down the connector lock.
