Inner Knee Bar, Removing And Installing, Driver Side: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far up and backward as possible to be able to use the entire steering column adjustment range.

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the front passenger side decorative trim for the instrument panel. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Remove the front storage compartment in the center console. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the A/C display control head trim. Refer to DISPLAY CONTROL HEAD TRIM, REMOVING AND INSTALLING .

-- Remove the center and front passenger instrument panel vent. Refer to CENTER VENT, REMOVING AND INSTALLING .

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

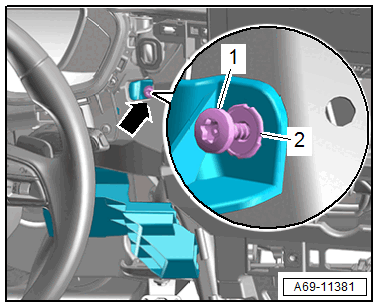

Courtesy of AUDI

-- Remove the expanding clip -arrow- through the opening in the instrument panel.

-- To do so remove using a threaded stud Torx screwdriver -1- and remove the expanding clip -2- for the knee bar.

-- Move the steering wheel as far up and backward as possible to be able to use the entire steering column adjustment range.

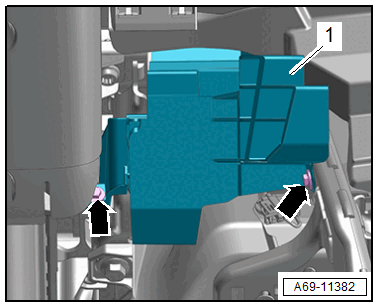

Courtesy of AUDI

-- Remove the bolts -arrows-.

-- Remove the knee bar -1- downward out of the instrument panel.
