Connector On Airbag, Removing And Installing: Removing
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
-- Remove the driver side airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
- To prevent electrostatic charge, the technician must not leave the vehicle during the procedure.

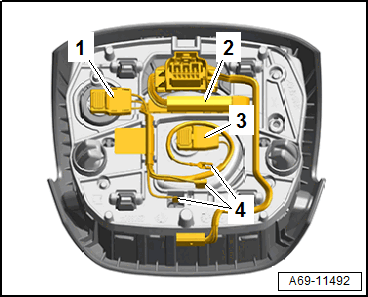

-- Release the connector lock -2- for the connector -1- with a small screwdriver -arrow-.
Vehicles through 07/2017
-- Disconnect the connectors -2- from the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-.
-- Disconnect the connectors -3- and -4- by releasing the retaining tab.
-- Disengage and remove the wiring harness -1- at the brackets.
Vehicles from 07/2017
-- Disconnect the connectors -1- and -3- from the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-.
-- Disconnect the connectors -4- by releasing the retaining tab.
-- Unclip and remove the wiring harness -2- from the brackets.
