Airbag Unit With Igniter, Removing And Installing, Vehicles Through 07/2017: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of injury due to involuntary deployment.

Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, connecting a connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.

Install in the reverse order of removal while noting the following:

NOTE:

Make sure the connectors are pushed in all the way and that they engage audibly.

Make sure the wires are not pinched.

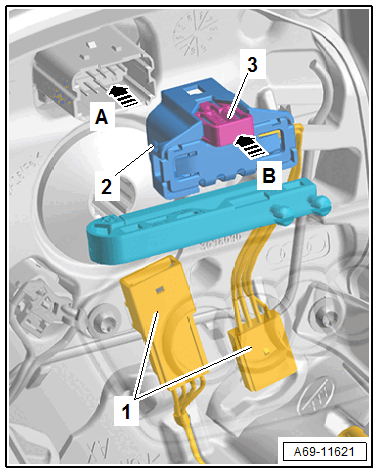

-- Connect the connector -1- and push in to attach to the pockets on the steering wheel.

Courtesy of AUDI

-- Connect the connector -2- all the way onto the Steering Column Electronics Control Module -J527- -arrow A-.

-- Push in the connector lock -3- -arrow B-, which will lock the connector.

-- Position the driver side airbag in the steering wheel and press on until it audibly engages.

WARNING:

Repairing pyrotechnic components (for example the airbag and seat belt tensioner) incorrectly increases the risk of injuries due to unintentional deployments when the battery is connected.

The ignition must be on when connecting the battery.
Make sure that no one is inside the vehicle at the time when the battery is connected.

-- Connect the battery ground cable with the ignition switched on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

WARNING:

Repairing pyrotechnic components (for example the airbag and seat belt tensioner) incorrectly increases the risk of injuries due to unintentional deployments when the ignition is switched on.

If the ignition is not switched on after the battery is reconnected - >>indicator lamps in the instrument cluster do not light up<< - the ignition (key/button) may only be switched on when the driver seat is positioned all the way back.

-- Check and erase the airbag control module DTC memory because faults can be stored from when the connectors are disconnected. Use the Vehicle Diagnostic Tester.
