Front Child Seat Anchor, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Unscrew the front seat and tip forward with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Manual backrest adjustment: remove the backrest adjustment hand wheel. Refer to BACKREST ADJUSTMENT HAND WHEEL, REMOVING AND INSTALLING .
-- Sport seat: disengage the straps for the backrest cover.

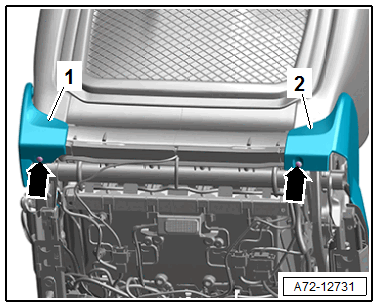

-- Remove the expanding rivets -arrows-.
-- Disengage the rear seat side trims -1- and -2- from the backrest hinge and push slightly to the side.
-- Remove the bolts -arrows-.
-- Remove the child seat anchor -1- toward the rear from the front seat.
NOTE:
Remove the casing from the child seat anchor; disengage the molding to do so.
