Side Cushion Without Thorax Airbag, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bench seat / bucket seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

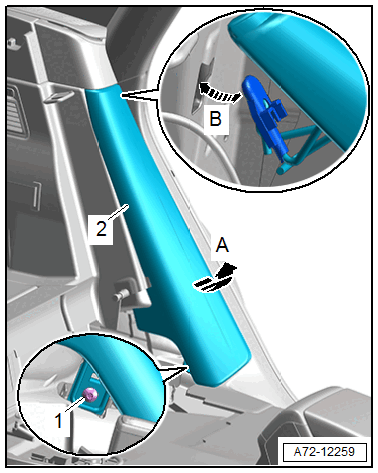

-- Remove the bolt -1-.
-- Hold the seat belt webbing to the side and tilt the bottom of the side cushion -2- upward -arrow A- and remove.
-- Low rear seat: fold the rear seat backrest forward.
-- Unhook the upper side cushion -arrow B- and remove by carefully pulling the side cushion forward.
