Inner Backrest Hinge Trim Panel, Removing And Installing, Single Seats: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the single seats. Refer to SINGLE SEATS, REMOVING AND INSTALLING .

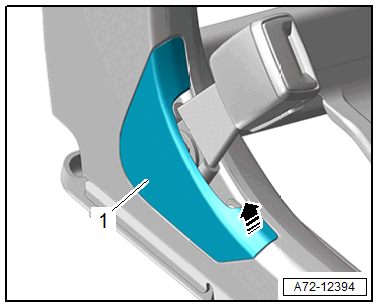

-- Left single seat: unclip the seat belt latch cover -1-.

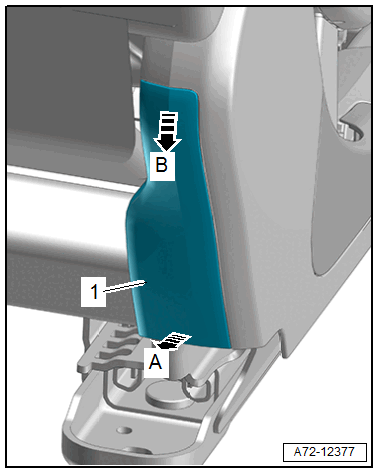

-- Unclip the lower cover -1- from the trim panel -arrow A-.
-- Remove the upper cover from the trim panel -arrow B-.

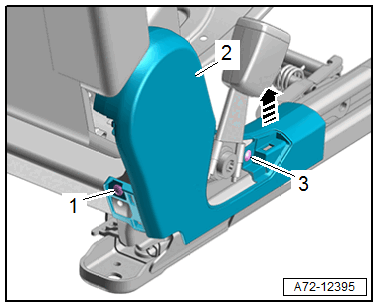

-- Remove the expanding rivets -1- and -3-.
-- Disengage the trim panel on the seat frame and the backrest hinge -arrow-.
-- Guide out the trim panel -2- over the seat belt latch and remove.
