Outer Rear Seat Backrest, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bench seat. Refer to BENCH SEAT, REMOVING AND INSTALLING .

-- Right rear seat backrest: remove the rear center belt end fitting. Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING .

Courtesy of AUDI

CAUTION:

Risk of malfunction.

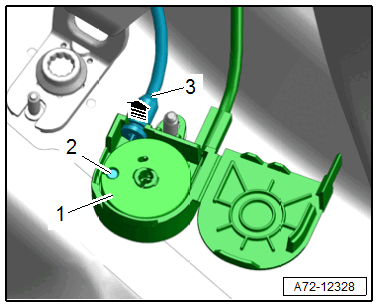

When removing and installing the release cable, do not under any circumstances remove the idler roller -1- from the coupling housing.

-- Open the coupling housing cover.

-- Disengage the release cable support bracket -3- from the mount on the coupling housing -arrow-.

-- Disengage the release cable nipple -2- from the idler roller -1-.

-- Remove the front luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

Courtesy of AUDI

-- Fold the rear seat backrests forward.

-- Push the center bearing cover -1- with a small screwdriver out of the retainer -arrow A-.

-- Tilt the center bearing cover toward the rear and disengage at the hook -arrow B-.

-- Fold the rear seat backrests forward.

Courtesy of AUDI

-- Remove the bolt -1-.

-- Tilt the securing bracket -2- forward and disengage downward from the center bearing -arrow- at the same time.

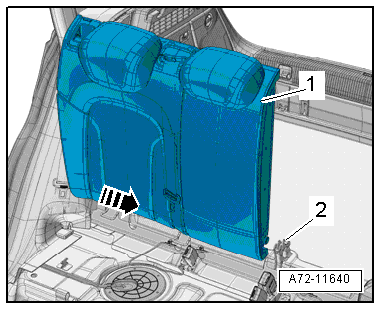

-- Fold the rear seat backrest -1- slightly forward.

Courtesy of AUDI

-- Remove the rear seat backrest from the center support -2-.

-- Remove the rear seat backrest from the outer bearing toward the center of the vehicle -arrow-.

-- Remove the backrest from the vehicle.
