Center Folding Backrest Locking Mechanism, Removing And Installing, Single Seats: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Fold the center folding backrest forward.
-- Move the headrest all the way up.
-- Remove the locking mechanism trim. Refer to CENTER FOLDING BACKREST LOCKING MECHANISM TRIM, REMOVING AND INSTALLING, SINGLE SEATS .
-- Free up the cover in the locking mechanism area.

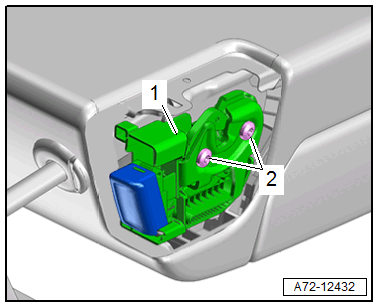

-- Remove the bolts -2-.
-- Remove the locking mechanism -1- from the backrest frame.
