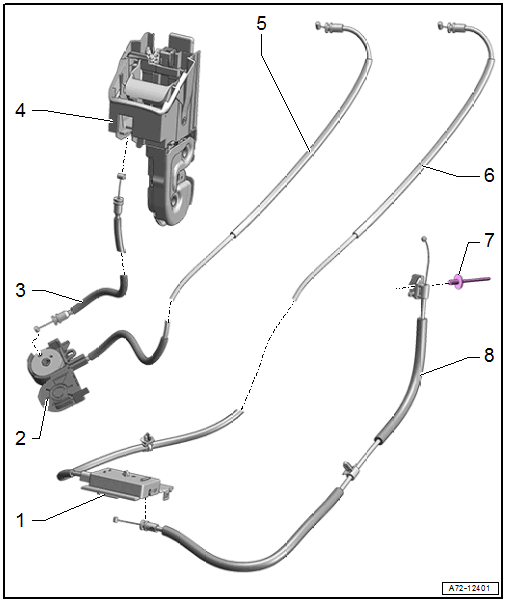

Overview - Remote Backrest Release
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Coupling Housing
- For the release cable
- Equipped on some models: single seats
- Clipped onto the seat frame under the bench seat
- Coupling Housing
- For the release cable
- Equipped on some models: low rear seat
- Clipped onto the vehicle floor under the bench seat
- Release Cable
- For the locking mechanism
- Equipped on some models: low rear seat
- Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING
- Locking Mechanism
- For the rear seat backrest
- Equipped on some models: low rear seat
- Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING
- Release Cable
- For remote backrest release
- Equipped on some models: low rear seat
- Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING
- Clip into the body
- Release Cable
- For remote backrest release
- Equipped on some models: single seats
- Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING
- Clip into the body
- Rivet
- Release Cable
- For the folding backrest
- Equipped on some models: single seats
- Refer to FOLDING BACKREST RELEASE CABLE, REMOVING AND INSTALLING
