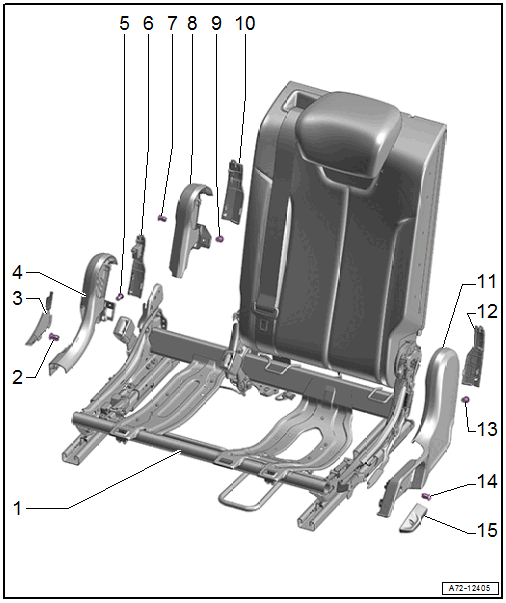

Seat Frame Trim Panels
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Frame
- Expanding Rivet
- Cover
- For the Seat Belt Latch
- Clipped into the trim panel
- Trim Panel
- For the seat frame
- Inner hinge (tunnel-side)
- Refer to INNER BACKREST HINGE TRIM PANEL, REMOVING AND INSTALLING, SINGLE SEATS
- Expanding Rivet
- Rear Cover
- Clipped into the trim panel
- Expanding Rivet
- Trim Panel
- For the seat frame
- Center backrest hinge (left seat frame only)
- Refer to CENTER BACKREST HINGE TRIM PANEL, REMOVING AND INSTALLING, SINGLE SEATS
- Expanding Rivet
- Rear Cover
- Clipped into the trim panel
- Trim Panel
- For the seat frame
- Outer hinge (side sill side)
- Refer to OUTER BACKREST HINGE TRIM PANEL, REMOVING AND INSTALLING, SINGLE SEATS
- Rear Cover
- Clipped into the trim panel
- Expanding Rivet
- Expanding Rivet
- Handle
- For the folding backrest handle
