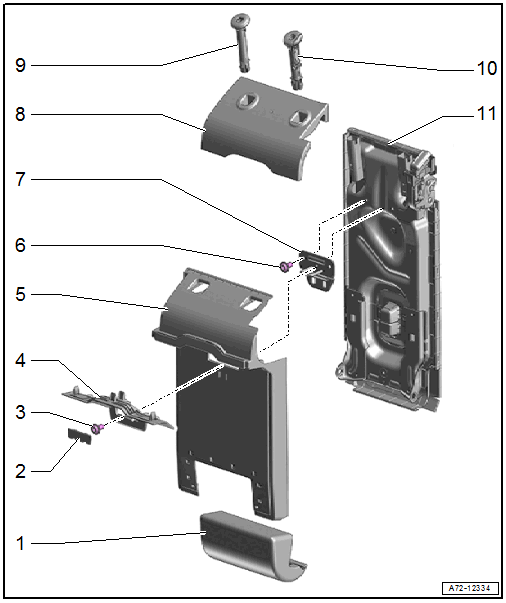

Center Folding Backrest Trim Panels
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Lower Center Cushion
- Refer to CENTER CUSHION, REMOVING AND INSTALLING, BACKREST WITH PASS-THROUGH
- Attach to the center folding backrest and press on until it audibly engages
- Cap
- Clipped into the cover
- Bolt
- 4 Nm
- Cover
- For center armrest striker
- Trim Panel
- For center folding backrest
- Refer to CENTER FOLDING BACKREST TRIM PANEL, REMOVING AND INSTALLING
- Bolt
- Quantity: 2
- 4 Nm
- Retainer
- Upper Center Cushion
- Headrest Guide
- Right side with locking spring
- Refer to HEADREST GUIDE, REMOVING AND INSTALLING
- The guide tab must engage in the mount cut-out on the headrest guide
- Push in until the retaining tabs correctly latch to the backrest frame.
- Headrest Guide
- Left side with the headrest height adjustment button
- Refer to HEADREST GUIDE, REMOVING AND INSTALLING
- The guide tab must engage in the mount cut-out on the headrest guide
- Push in until the retaining tabs correctly latch to the backrest frame.
- Center Backrest Frame
