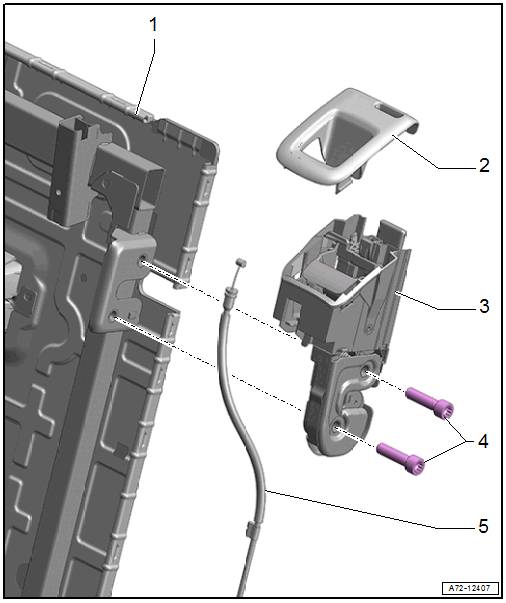

Overview - Outer Rear Seat Backrest Locking Mechanism
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Backrest Frame
- For left rear seat backrest
- Trim
- Locking Mechanism
- For the rear seat backrest
- Refer to OUTER REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING
- Bolts
- 25 Nm
- Release Cable
- For remote backrest release
- Clipped into the backrest frame
