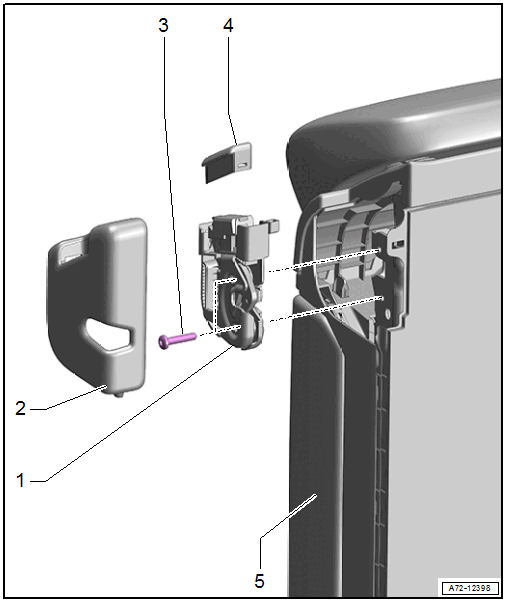

Overview - Center Folding Backrest Locking Mechanism, Single Seats
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Locking Mechanism
- For the rear seat backrest
- Refer to CENTER FOLDING BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING, SINGLE SEATS
- Trim
- Bolt
- Quantity: 2
- 25 Nm
- Release Button
- Press on until it engages audibly
- Center Folding Backrest
