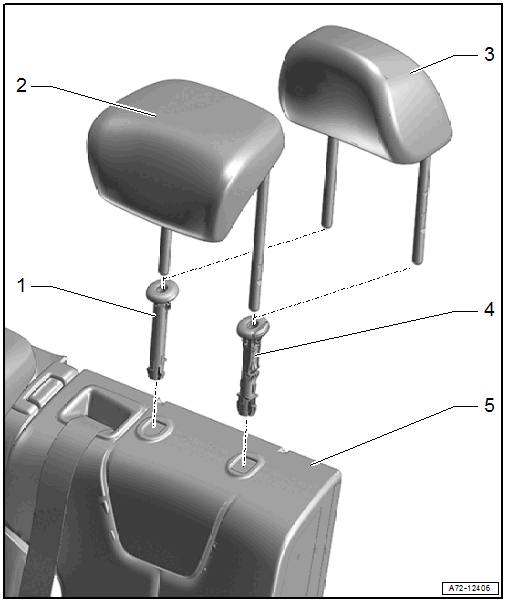

Overview - Headrest And Headrest Guide
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The headrest guides for the outer rear seat backrests are displayed as the example.
- Headrest Guide
- Right side with locking spring
- Refer to HEADREST GUIDE, REMOVING AND INSTALLING
- The guide tab must engage in the mount cut-out on the headrest guide
- Push in until the retaining tabs correctly latch to the backrest frame.
- Headrest
- Country/equipment versions
- Refer to HEADREST, REMOVING AND INSTALLING
- Must be locked in the headrest guides
- Headrest
- Country/equipment versions
- Refer to HEADREST, REMOVING AND INSTALLING
- Must be locked in the headrest guides
- Headrest Guide
- Left side with the headrest height adjustment button
- Refer to HEADREST GUIDE, REMOVING AND INSTALLING
- The guide tab must engage in the mount cut-out on the headrest guide
- Push in until the retaining tabs correctly latch to the backrest frame.
- Rear Seat Backrest
