Overview - Bench Seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

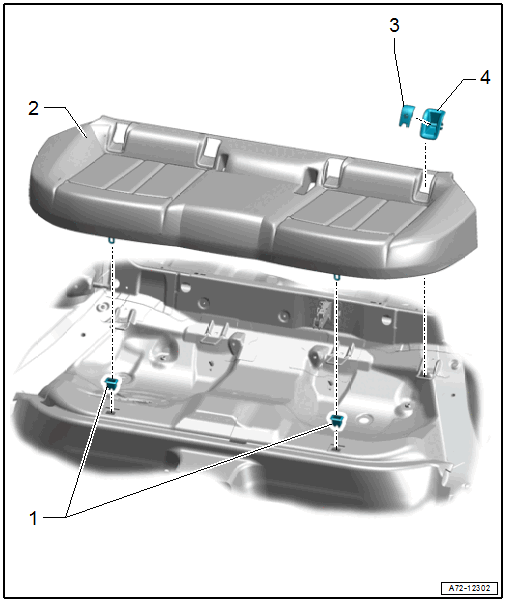

Fig 1: Exploded View Of Bench Seat

Courtesy of AUDI

Retainers
- For securing the rear bench seat
- Clipped into the vehicle floor
- Replace after every time the bench seat is removed
Bench Seat
- With the molded piece
- Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING
- Must engage correctly in the mounts
Cap
- For the child seat anchor
- Quantity: 4
- Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING
Guide
- For the child seat anchor
- Quantity: 4
- Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING
- Must be secure in the anchor
