Outer Bearing Sleeve, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the backrest. Refer to OUTER REAR SEAT BACKREST, REMOVING AND INSTALLING .

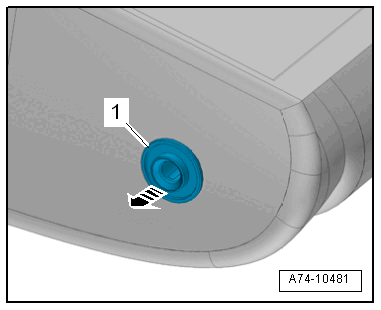

-- Unclip the bearing sleeve -1- from the backrest using the Trim Removal Wedge:3409 -arrow- ; do not damage the cover while doing so.
