Inner Mounting Pin, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the backrest from the center bearing. Refer to CENTER BRACKET, REMOVING AND INSTALLING .

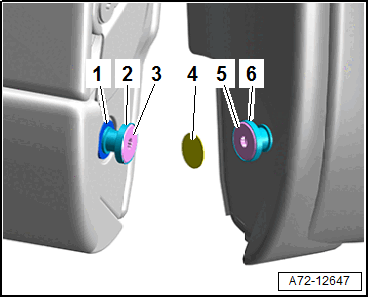

-- Right backrest: unscrew the mounting pin -3- and remove it with the bearing sleeve -2- and washer -1- (if equipped).
-- Left backrest: remove the chafe protection -4-, unscrew the mounting pin -5- and remove it with the bearing sleeve -6-.
