Headrest Guide, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear headrest. Refer to HEADREST, REMOVING AND INSTALLING .

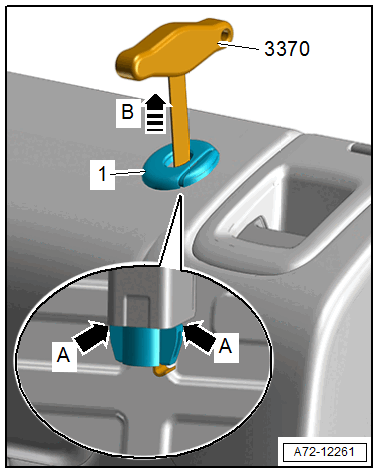

-- Guide the Hook:T10538 or Backrest Panel Tool:3370 into the headrest guide -1- and attach to the tab.
-- Pull the headrest guide tabs -A arrows- inward with the hooks and at the same time, remove the headrest guide upward out of the backrest frame -arrow B-.
