Folding Backrest Release Cable, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the single seats. Refer to SINGLE SEATS, REMOVING AND INSTALLING .
-- Remove the outer backrest hinge trim panel. Refer to OUTER BACKREST HINGE TRIM PANEL, REMOVING AND INSTALLING, SINGLE SEATS .

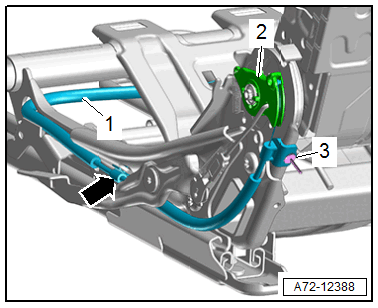

-- Unclip the release cable bracket -arrow- and free up the folding backrest release cable -1-.
WARNING:
Risk of eye injury.
- Wear protective eyewear!
-- Drill out the rivet -3-.
-- Disengage and remove the release cable end on the relay lever -2-.
