Center Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bench seat. Refer to BENCH SEAT, REMOVING AND INSTALLING .

-- Remove the front luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

-- Fold the rear seat backrests forward.

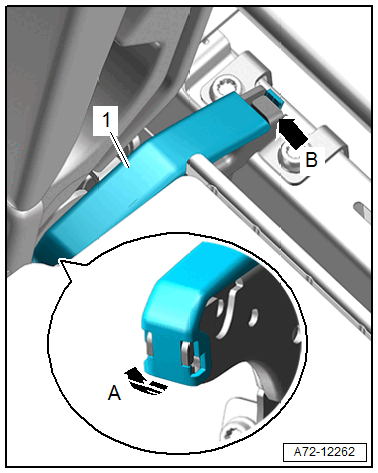

-- Push the center bearing cover -1- with a small screwdriver out of the retainer -arrow A-.

Courtesy of AUDI

-- Tilt the center bearing cover toward the rear and disengage at the hook -arrow B-.

-- Fold the rear seat backrests forward.

Courtesy of AUDI

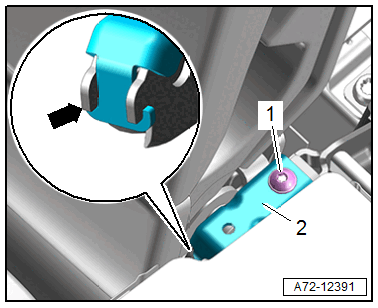

-- Remove the bolt -1-.

-- Tilt the securing bracket -2- forward and disengage downward from the center bearing -arrow- at the same time.

-- Pry out the rear seat backrests from the center bearing and move to the side.

Courtesy of AUDI

NOTE:

Disengaging the rear seat backrest from the mountings will be enough.

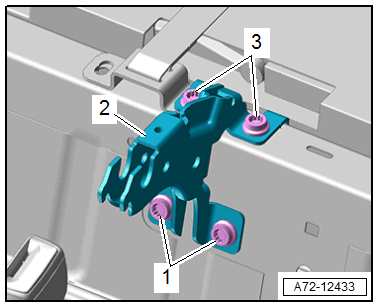

-- Remove the bolts -1- and -3-.

-- Remove the center support -2- from the underbody.
