Center Armrest, Removing And Installing, Single Seats: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center folding backrest. Refer to CENTER FOLDING BACKREST, REMOVING AND INSTALLING, SINGLE SEATS .

-- Remove the center folding backrest trim panel. Refer to CENTER FOLDING BACKREST TRIM PANEL, REMOVING AND INSTALLING .

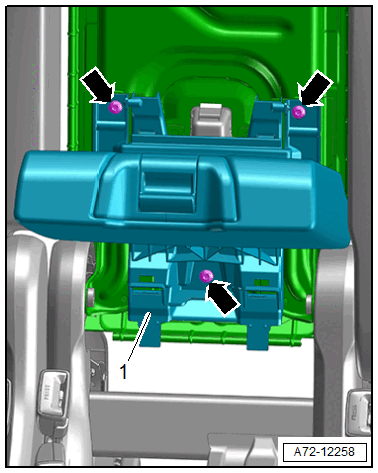

-- Remove the bolts -arrows-.

GWWA72-12258Courtesy of AUDI

-- Disengage and remove the center armrest -1- from the backrest frame.
