Single Seats, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seats all the way forward.

-- Remove the seat cushion. Refer to SEAT CUSHION, REMOVING AND INSTALLING, SINGLE SEATS .

-- Move the rear seat into the most forward position and fold the backrest forward.

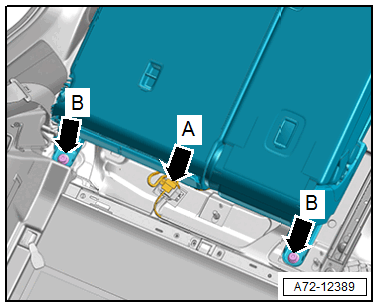

-- If installed, disconnect and free up the seat belt switch connector -arrow A-.

Courtesy of AUDI

-- Remove the bolts -B arrows-.

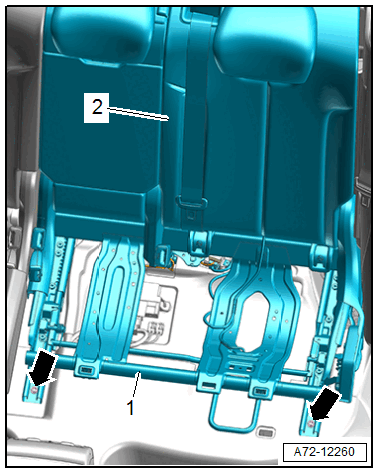

-- Fold the backrest -2- toward the rear and adjust the rear seat to the rear position.

Courtesy of AUDI

-- Remove the bolts -arrows-.

-- Fold the backrest forward again.

-- Lift the seat frame -1- at the front.

Courtesy of AUDI

CAUTION:

Risk of malfunction.

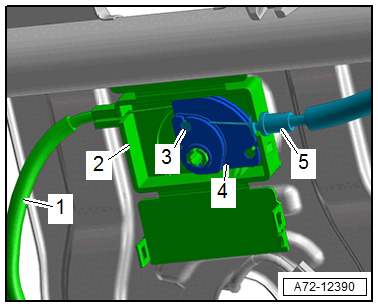

When removing and installing the release cable, do not under any circumstances remove the relay lever -4- from the coupling housing.

-- Open the coupling housing cover.

-- Disengage the release cable bracket -5- from the mount on the coupling housing.

-- Disengage the release cable nipple -3- from the relay lever -4-.

-- Unclip and disengage the release cable -1- and coupling housing -2- from the seat frame.

-- To protect the sill panel before prying out the rear seat, apply the Universal Vehicle Protector:VAS 871 001 .

Courtesy of AUDI

-- Remove the seat from the vehicle with a second technician.
