Seat Side Trim On Side Sill Side, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seat into its highest position.

Standard/Sport seat

-- If installed, remove the backrest adjustment hand wheel. Refer to BACKREST ADJUSTMENT HAND WHEEL, REMOVING AND INSTALLING .

-- If equipped, remove the seat height adjustment handle. Refer to SEAT HEIGHT ADJUSTMENT HANDLE, REMOVING AND INSTALLING .

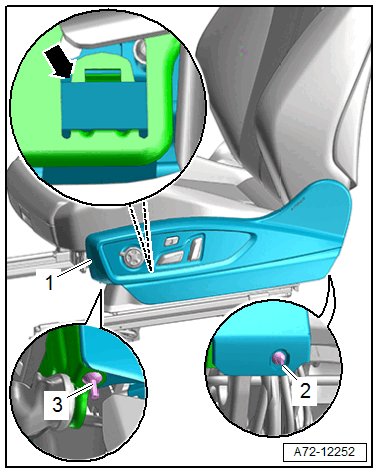

-- Remove the expanding rivets -2- and -3-.

Courtesy of AUDI

-- Disengage the inner front bracket -arrow- on the seat side trim upward.

-- Pull out the seat side trim -1- upward.

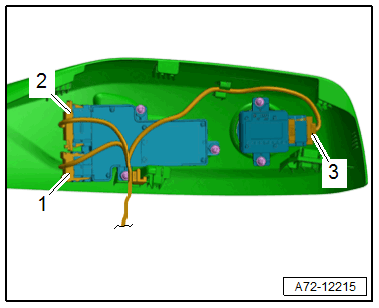

-- If equipped, disconnect the connectors, to do this press the release.

Courtesy of AUDI

1, 2 - For Driver Seat Adjustment Control Head -E470- / Front Passenger Seat Adjustment Control Head -E471-

3 - For Driver Seat Switch Module -E663- / Front Passenger Seat Switch Module -E664-

-- Free up the wiring harness.

-- Remove the seat side trim on side sill side.

Seat Side Trim Bracket on Side Sill Side, Removing

Courtesy of AUDI

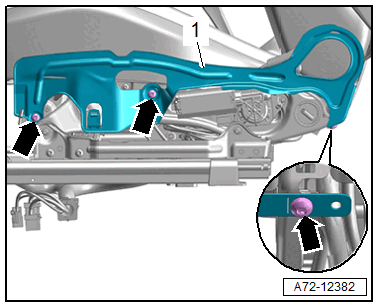

-- Remove the bolts -arrows- and the bracket -1-.
