Front Seat Trim/Handle, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Move seat depth adjuster forward.
-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- If installed, remove the fire extinguisher bracket. Refer to FIRE EXTINGUISHER BRACKET, REMOVING AND INSTALLING .

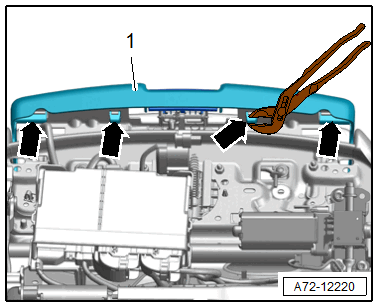

-- Release the retaining hooks -arrows- on the seat trim -1-.

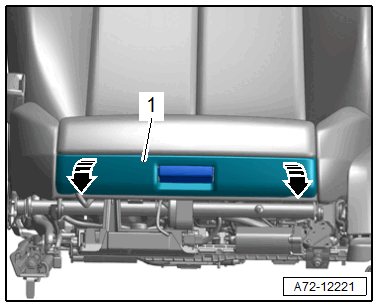

-- Disengage the front seat trim -1- -arrows-.

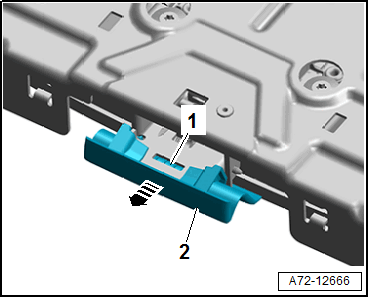

-- Release the retainer -1- using a flat-head screwdriver and remove the seat depth adjuster handle -2- from the handle mount -arrow-.
