Seat Height Adjustment Handle, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seat all the way forward and up.
-- Remove the seat height adjustment handle from the seat toward the side -arrow-.
TIP
If the handle cannot be removed, proceed as follows:
-- Slide the Trim Removal Wedge:3409 between the handle -1- and the seat side trim -2-.
-- To protect the seat side trim, place a cloth -3- between the trim panel and Puller - Unit Injector Puller - Unit Injector:T10055 before positioning the tool.
-- Position the Puller - Unit Injector:T10055 as shown on the lever and remove the lever from the seat -arrow-.
-- Remove the seat side trim on the side sill side. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .

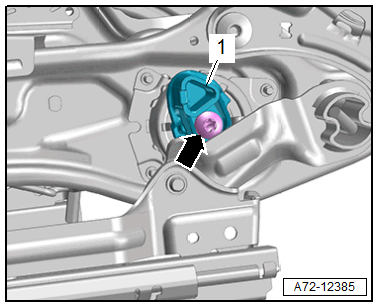

-- Remove the bolt -arrow- to remove the seat height adjustment adapter -1-.
